1. Introduction

In the manufacture of cement, the grinding process is governed by many factors, one of them is the ball size distribution, in effect, not hitting a good distribution of ball size, could affect not only the output but also the product quality and energy consumption [1]. In addition, one of the ways to decrease the energy consumption in the mills is to make the mill reach the steady state in a shorter period of time and it has been proven that the size of the ball is one of the most critical parameters that influences this stage of the grinding process [2].

In general, the ball size distribution (BSD) is unknown, since its measurement leads to the difficult task of unloading the mill and classifying the balls into different sizes.

The measurement of the load of the mill on a laboratory scale can be done by means of a weighing platform. Industrial-scale circuits demand more sophisticated measurement techniques [3]. Most of the solutions to this problem are very expensive, so the possibility of screening the grinding bodies more than once is not feasible. For this purpose, the study of the make-up ball charge and the wear processes is necessary to derive population balance models, as obtained by Menacho and Concha [4,5]; Concha et al. [6], and Herbst and Fuerstenau [7]. Recently, [8] used a simulation that combined the milling circuits and the BSD to determine the best make-up ball charge applicable to a platinum-bearing ore. Studies performed by Austin et al. [9] have been focused on the grinding performance through the very well-known selection function, which also has been used by Katubilwa and Moys [10] and Bwalya et al. [11] to obtain the BSD in coal mills. In addition, modeling works for ceramic balls in tumbling mills were addressed by [12] and [13], respectively.

Furthermore, some research work has been conducted where alumina powder is ground by using different ball size distributions. For instance, [14] performed a phenomenological study in which he compared unimodal and bimodal ball size distributions to a mixture of alumina powder and zirconia. Findings in his research better results with the bimodal size distribution ball. Additionally, [15] examined the efficiency of a laboratory mill where alumina powder was milled by zirconia beads in an aqueous medium and found that for a specific mill’s rotation speed there is an optimal size ball that minimizes the alumina particle size.

There are several mathematical models applied to the particle size distribution. Djamarani and Clark characterized the particle size through fine and coarse fractions using a Rosin-Rammler (RR) distribution function [16]. García et al. successfully applied the Rosin-Rammler [17] and Gates-Gaudin-Schumann (GGS) [18,19] models to the agglomerated cork with excellent results and stated that these models could be implemented for other kinds of materials [20]. In the present study, the BSD for two mills of a white cement crushing and the grinding plant was characterized using the Swebrec model. This model, in the beginning, was proposed to exclusively describe the particle size distribution of blasting products, and in some cases primary crushing operations, with a good fitting in the full-size range [21,22]. However, Osorio et al. used this model to describe PSD in fine grinding processes [23] and Menendez-Aguado et al. use for the fitting of surface detrital sediment [24].

2. BSD mathematical model and results

Considering that cumulative passing function F(x) can be expressed as:

Taking into consideration that f(x_max) = 0 and f(x₅₀) =1, the function is fixed at x_max and x₅₀.

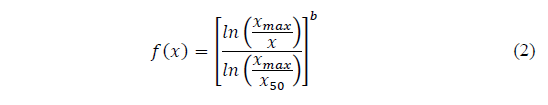

Finally, f(x) is:

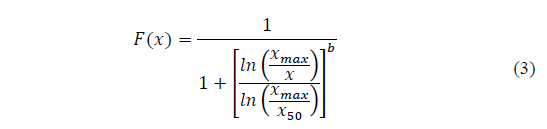

As a consequence, the Swebrec distribution function can be described:

Where F(x) is cumulative passing at x size; x_max is maximum size; x₅₀ size passing 50% weight and b the curve waving parameter.

3. Experimental procedure and initial condition

During the mill’s maintenance stop of a crushing and grinding plant, the ball bed for two mills was unloaded with its 25 tons for unit 1 and 39 tons for unit 2 of alumina balls. The mill’s inner diameter D (usable diameter) is 242 cm and the mill’s inner length (usable length) is 650 cm. Fig. 1 shows an interior view of the mill employed in this study.

Figure 1. : Snapshot of the interior of the industrial mill after the unloading process.

Source: The Authors.

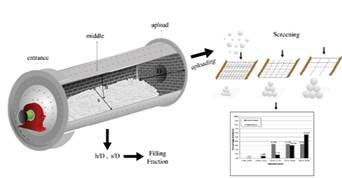

The balls for both mills, were sieved through the meshes of (38.10 mm), (31.75 mm), (25.40 mm), and (19.05 mm) and weighed before and after the maintenance stops, in order to determine the experimental BSD presented in Table 1. A schematic representation of the sieving process is shown in Fig. 2.

Figure 2.: Sieving process during mill stop.

Source: The Authors.

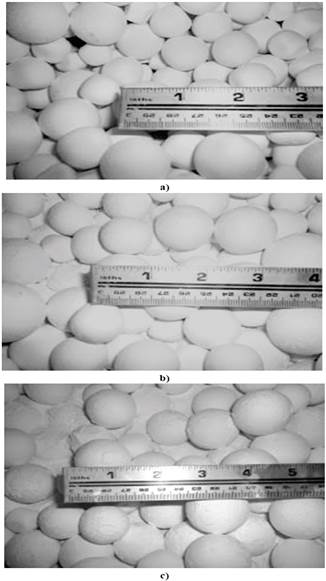

Figure 3: Snapshots of the ball bed surface at the (a) entrance, (b) middle, and (c) unloading point after the mill stops. Ball mill charge distribution was obtained and it is shown in Fig. 3.

Source: The Authors.

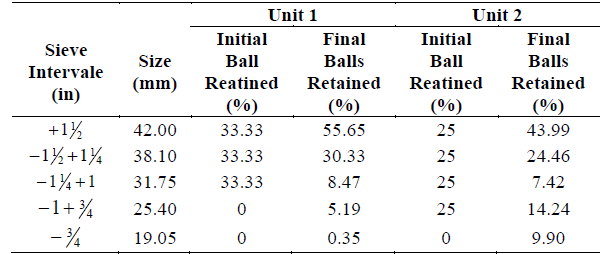

Table 1: Mills ball bed distribution results.

Source: The Authors.

5. Results and discussion

Fig. 4 shows the initial charge histogram and current balls for both units. In the unloading process of unit 1, at first glance a significant number of balls were not found to be fractured, however, some balls with structural deformities were found.

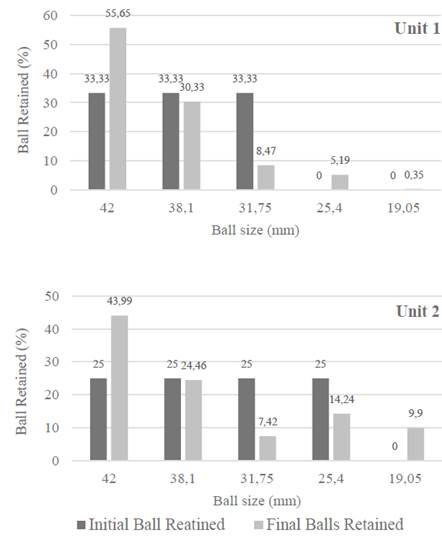

Figure 4: Histogram of the initial and current balls retained in unit 1 a) and 2 b). The numbers between brackets determine the size range of the balls that can pass through each sieve.

Source: The Authors.

Fig. 4, shows that in the initial mill charge process, were used percentages of 33% for the 30, 36, and 42 mm ball sizes in unit 1. In unit 2, the ball mill charge employed was the same percentage for all sizes, including 25.4 mm.

It was determined that, in the unloading process, the sieved ball percentage that uses a bigger mesh was around 55% of unit 1. In addition, it can be seen that current balls retained is greater than the initial one in the size interval between 38.10 mm and 42.00 mm mesh, due to the fact that once the grinding process started, the mill was recharged only with 42 mm balls (the biggest ones), while in the other meshes the current balls retained is smaller than the initial one. This fact suggests that this particular mill could be recharged in the grinding process with balls of different sizes, leading to optimal grinding conditions. The percentages of sieved balls in the two smaller meshes are due to the fact that the small balls are worn.

For unit 2, in the unloading process, it was resolved that the sieved ball percentage using a bigger mesh was around 43%. For ball size of 38 mm, the percentage was approximately the same that in the beginning, while for the smallest ball size the percentages decreased to 7.42% and 14.24%. The above one indicates greater wear in balls of smaller size than in the larger ones, which means that after the change the number of balls of larger size is very high. This aspect may represent an increase in the energy consumption of the mill, since it inherently affects the milling process.

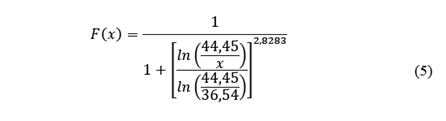

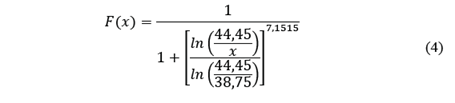

About Swebrec function adjust for BSD, results are presented in Figs. 5 and 6. The functions for the adjustment are the equations [4] and [5] for unit 1 and unit 2, respectively:

From Figs. 5 and 6, in both cases the parameter x₅₀ showed similar values, 38.75 mm for unit 1 and 36.54 mm for unit 2, however, in the waving parameter, b, a marked difference is seen with values of 7.1515 for the unit 1 and 2.8283 for unit 2.

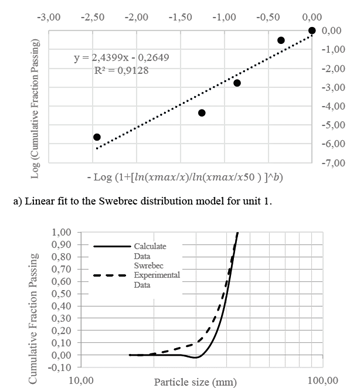

Figure 5 : b) Experimental data fit to Swebrec distribution for unit 1. Model result for unit 1.

Source: The Authors

Figure 6.: Model result for unit 2. b) Experimental data fit to the Swebrec model for unit 2.

Source: The Authors

Some authors have reported that when b → 1, the inflection point of the curve tends to x=x_max, and likewise if parameter b increases, the point of inflection of the curve tends to x = x₅₀ [18], in this case when calculating the inflection points, both tends to x=x_max. It is possible that this is due to the proximity between x_max and x₅₀ for both units.

Also, it can be seen that Swebrec model is in high agreement with the experimental data, since the correlation coefficients obtained in the adjustment scheme are 0.9128 and 0.9398, for unit 1 and unit 2, respectively. In this sense, it could be suggested that the Swebrec function seems to obtain good modeling of BSD functions, thus becoming a sound alternative to traditional functions to describe the ceramic ball wear process in white industrial cement.

6. Conclusions

In general, from the results obtained in the present study, it can be established that the alumina ball size distribution in a white cement mill can be approximated by a Swebrec distribution function since correlation coefficients obtained in the adjustment procedures were greater than 0.9. Results prove that the Swebrec function not only fits with reasonably good accuracy PSD in the coarse size range, fine grinding or surface detrital sediments as it is well-known and recorded in the literature but can be used to describe BSD in an industrial grinding. Finally, the results described above could contribute to a future study that would relate the balls wear to a reduction of the energy consumption of the mill.
