1. Introduction

To meet the real-time energy demands of a given population, hydroelectric power generation plants must operate at different power levels and even undergo several start and stop processes. This produces changes in dynamic operating conditions that create fluctuating stresses in their mechanical components. Therefore, the machines are submitted to stress cycles that are different from those produced by steady operation at the best efficiency operating point. Due to these stress cycles, some structural elements of these machines could be operating beyond their endurance limit and may be at the risk of fatigue failure. Manufacturers in the energy business rarely share information about their designs. Additionally, it is difficult for a designer to determine precise system behavior according to where the machine will be installed in terms of starts/stops, transient phenomena due to failures, and so on, which inevitably will occur during actual operation. In addition, the dynamics of an interconnected system will vary according to system topology, meteorological conditions, and generation plant distribution.

Many of the structural elements of the generation units are subjected to fluctuating loads because of vibrations, different power generation levels, starts/stops dependent on market demands, and transient phenomena such as load rejections, short circuits, etc. These load variations can produce fatigue failures resulting in catastrophic failure due to replacement cost and time and environmental and human risks.

Most structural and failure analyses of generator components have been performed on the shaft. Momcilovic et al. [1] reported a failure analysis of a 28 MW Kaplan shaft where fatigue cracks were detected. In addition to visual examination and material property analysis, they performed stress analysis using the finite element method (FEM) during start-and-stop cycles and during steady-state operation. They found that the combination of a high stress range and a corrosive environment at the cracked region caused failure. Another case of failure on a wind turbine shaft produced by fatigue was reported in [2]. In this case, material property analysis, analytical stress calculation, and stress concentration analysis allowed the authors to conclude that high stress concentration and scratches produced by rubbing with an annular ring were the main causes of failure. Several researchers have studied shaft torque, even under transient conditions generated during transient electrical phenomena, and have evaluated its effect on shaft fatigue [3-13].

Dorji and Ghomashchi [14] presented a literature review of failure mechanisms and focused mainly on turbines where problems such as erosion and cavitation were reported as the main cause of failure. Another review that focused on the hydroturbine fatigue failure was presented in [15], where the effects of stationary operation and transient events on fatigue were analyzed. Maekawa et al. [16] implemented a measurement system to permanently monitor operating conditions and evaluate stresses for actual loads and fatigue damage. Previous studies have evaluated the effects of operating conditions and their influence on the cumulative damage of structural elements at power generation plants. Mirandola [17] evaluated the relationship between thermal stress at different load operating conditions and fatigue life and creep phenomena in steam power units.

Stress and fatigue analyses of structural elements other than shafts are scarce in the literature. Although the stress state of a generator and the methodology needed to obtain it should be easily attained by designers, they do not always share that information with the powerplant staff. However, powerplant engineers need that information to predict the fatigue life or remaining life of their machines according to the actual operation conditions and implement more efficient monitoring, maintenance, replacement and risk management plans.

In our previous paper [18], a stress and fatigue life analysis was performed on the shaft of a 100 MW generator under actual loads. In this paper, we developed a stress analysis using the finite element method on the remaining structural elements of the rotor of the same generator considering loads under real working conditions to obtain stresses as a function of generated power. Torque, magnetic pulling forces, centrifugal forces and the weight of the components were considered as loads on the models. Torque and axial load applied by a Francis turbine on the shaft were measured with the machine working at different power levels. Measured torques were introduced into the numerical models as one of the loads. Radial displacement of the magnetic pole with the machine stopped and working was also measured to corroborate the results of the numerical models on some of the pieces. The stresses were linked to the generation history to obtain a stress history and to perform a fatigue analysis to calculate the residual life of the structural components.

This study is relevant for generation agents who need a methodology that can be applied to estimate the remaining life of the main structural components of hydrogenerators according to their operational history to develop long-term plans for restitution according to the internal strategy and risk management system of each company.

2. Methodology

Stresses on the poles, rotor rim, and rotor spoke of a 100 MW hydrogenerator were quantified by using finite element models. The loads on the models included the torque, axial force, centrifugal load due to the rotation of the rotor, magnetic pulling force on the poles, and tangential force on the poles that counters the torque applied by the runner. To validate the pole model, air gap measurements were performed in the unit to obtain the radial displacement of the pole, and the result was compared with the radial displacement obtained from the model. The torque and the axial force were measured on the shaft of the hydrogenerator while working at different power levels. Centrifugal and magnetic pulling forces were calculated by using analytical models. To obtain a stress history of each mechanical element, calculated stresses were fit to the power generation history of the unit, which consisted of hourly data of generated active power collected during one year of plant operation. The stress history was used along with the Wang-Brown multiaxial fatigue model to estimate the fatigue life of each component.

2.1. General geometry of the rotor

The basic representation of the rotor is presented in Fig. 1. The main structural parts of the rotor are the turbine, shaft, rotor spoke, rotor rim, and magnetic poles.

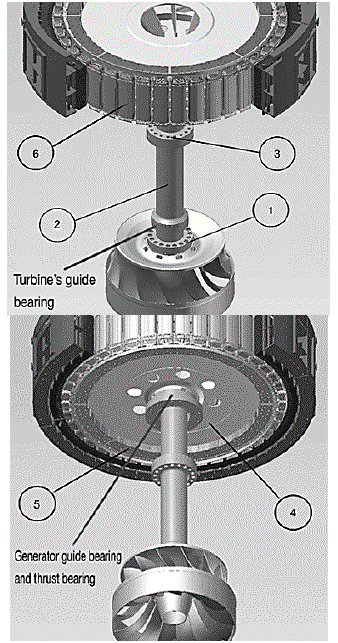

Figure 1: Rotor of the generator showing the main structural elements: 1) runner-shaft connecting bolts, 2) shaft, 3) upper-lower shaft connecting bolts, 4) rotor spoke, 5) rotor rim, and 6) magnetic pole. (Diameter of the rotor = 6.8 m).

Source: The Authors.

2.2. Field tests

Strains on the shaft were quantified using CEA-06-250US-350 strain gauges (Micro measurements, Malvern, PA). The strain gauges deliver a voltage signal proportional to strain. The normal strain was transmitted by radio frequency with a Torque Track 10K system, and the shear strain was measured with a Torque Track 9000 system (Biensfeld Engineering, Maple City, MI). The voltage signals from these torque track systems were registered using a 12-bit data acquisition system (model PMD 1280-LS, Measurement Computing, Norton, MA) at a sampling frequency of 100 Hz. To register normal strain, four strain gauges were connected in a full Wheatstone bridge configuration, with two of them aligned with the longitudinal direction of the shaft and the other two aligned at 90°. Shear strain was registered with the four strain gauges rotated 45° with respect to the longitudinal direction of the shaft. In this way, any normal strain in the longitudinal direction was cancelled, and only the principal strain produced by the torque was registered. Strains were measured with the machine working at 30, 35, 40, 50, 60, 70, 80, 90, 95 and 100 MW. Strains were also registered during machine start-up and during a 100 MW load rejection.

The air gap was measured using a General Electric measurement control system with a 3500 series Bently Nevada air gap and vibration monitoring system. This system includes four air gap 50 mm inductive sensors (Reference 13I01HAW) specially designed for large hydrogenerators. This system uses 3300 XL series vibration proximity sensors with a conversion scale of 200 mV/mil (1 mil = 0.001”). The system has a sample frequency of 20 kHz.

Signals were registered during field tests and included electrical power, angular velocity, wicket gate position, draft tube pressure pulsations, penstock pressure pulsations, temperatures, rotor field current, rotor field voltage, stator terminal current and voltage, bearing temperatures, stator temperatures and control variables of the unit (speed governor and voltage regulator). These signals were registered using a National Instruments NI cDAQ-9188 data acquisition system along with an NI 9203 analog current input module with a ±20 mA input, 16-bit resolution, and 200 kS/s sample frequency (for field measurements, the sample frequency was set to 100 Hz) and a NI 9201 voltage input module with an ±10 V input, 12-bit resolution and 500 kS/s sample frequency (for field measurements, the sample frequency was set to 100 Hz). The NI acquisition system was coupled with the native sensors of the unit to obtain the data during the test. All native sensors of the unit have output signals of 4-20 mA and 0-10 V.

Electrical power, angular velocity and wicket gate position are relevant to link strains with generation. Draft tube and penstock pressure pulsations were fit in the Turbine-Penstock mathematical model that was used to model the electrical torque failure at the generator’s stator; they were also used to link the damage behavior of the shaft at partial load generation during low-amplitude high-cycle strain analysis (contribution of vibration at each power step to the damage in the shaft). Rotor and stator currents and voltages were needed to estimate the magnetic pull of the force component in the pole piece. All the other variables were monitored for supervision of the machine during the tests.

2.3. Model development

In this section, the geometry, loads, and boundary conditions for the numerical models of the pole, rotor rim, and rotor spoke are outlined. Simulations for the three models were performed at 60, 80, and 100 MW. Additionally, a 150% overspeed of the nominal rotation speed was simulated, which was reached by the machine after load rejection. Additionally, torques of 1.5 and 3 times the nominal torque, corresponding to phase-to-ground and phase-to-phase failure, respectively, developed in a previous study [18], were applied to the models.

2.3.1. Magnetic pole

A pole is a fundamental part of a synchronous generator; its role is to create a magnetic flux through the air gap to induce the field into the stator and allow the power flow to be transformed from its mechanical nature into electrical energy. A pole is subjected to several kinds of loads ranging from centripetal accelerations to different mechanical forces due to the change of the generated power at the plant depending on the dispatch of the unit and other forces of transient phenomena such as overspeed and electrical failure.

The body forces and surface forces acting at the pole include the magnetic pull, tangential force due to torque and centrifugal force. For this analysis, unbalanced magnetic pull was not considered.

According to [19, 20], the magnetic pull at the pole can be calculated with Maxwell’s stress tensor, which is derived from the instantaneous value of the local magnetic flux density B by

Where μ₀= 4π×10^-7 H⁄_m is the permeability of air.

The mean Maxwell stress in the air gap can be computed from the magnetic flux density distribution, whose values were taken from [19].

From a mathematical point of view and taking only the first harmonic, the magnetic pull is calculated as [19].

Where B_δ is the maximum flux density in the air gap, B ^F _v is the coefficient of flux density distribution, τ _p is the polar pitch, and ν is the harmonics of the induction field of the flux. For practical engineering approaches and conservative calculations, the relation was used [21]. According to [22], the maximum flux density was calculated as

Where I _fd is the rotor field current taken from the field test at different power levels, N is the number of coils at the pole (25 for this case), and δ is the air gap (14 mm for this machine).

The tangential force component can be calculated from the magnetic induction field, but based on the equilibrium principle, it can also be calculated from torque shaft measurements and by distributing the total torque into each one of the poles (40 poles) with tangential components in the opposite direction to the shaft torque direction.

The centrifugal force due to the field winding mass was obtained using Newton’s second law:

Where m is the mass (350 kg), ω is the angular speed (18.85 rad/s), and r is the turning radius (3.4 m).

With the previously explained loads, a 3D finite element model of the pole was developed using ANSYS v16 software, adding gravitational effects and a constant temperature of 60 degrees Celsius along the pole body, which is the average temperature reached for the pole during steady-state operation as measured after operation at 30 MW. The loads and boundary conditions implemented in the model are shown in a top view of the model in Fig. 2.

Figure 2: Top view of the 3D model of the pole (upper part) including a small portion of the rotor rim (lower part) showing the loads and boundary conditions: a) magnetic pull surface traction, b) winding centrifugal force, c) tangential force of electromagnetic torque, d) pole centrifugal force, e) friction linear model μ=0.2, f) angular velocity, g) displacement boundary condition for axial symmetry (free radial displacement and total restriction for tangential displacement). The arrows at the bottom of the figure correspond to polar coordinates. Gravitational and temperature (60°C) were taken into account. The dimensions of the pole are 310 mm in the radial direction, 420 mm in the tangential direction and 1500 mm in the axial direction (long).

Source: The Authors.

In this model, a small portion of the rotor rim was simulated with tangential and axial displacement restrictions and free radial displacement to represent axial symmetry. This portion of the rotor rim was added only to allow more real boundary conditions for the pole at the dovetail surface. The results of this model are only valid for the pole piece because the symmetry condition for the rotor rim is not valid due to the presence of torque along this body.

2.3.2. Rotor rim

The rotor rim is formed by 298 plates with the geometry presented in Fig. 3. Each plate is rotated 9° with respect to the plate immediately on the top and the bottom and assembled with bolts through the holes. The assembly forms a ring with grooves on the inner diameter to be assembled with the rotor spoke and dovetail grooves on the outer diameter to hold the poles. Because the bolts restrict the displacement among plates to some degree, the analysis was performed with two models: in the first model, the ring was assumed to be a single complete body without considering the holes; in the second model, a plate including the holes was analyzed with different boundary conditions at the holes, including a) restriction of displacement at every hole, b) restriction of two holes at the sides, and c) restriction of displacement for a single hole on one side.

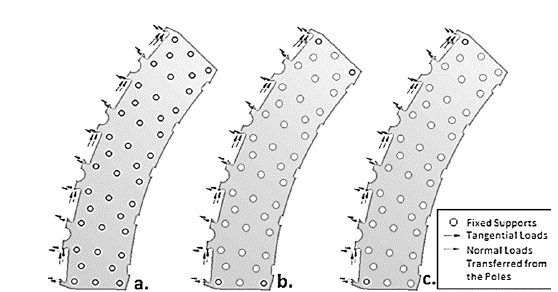

Figure 3: Rotor rim single-plate model showing boundary conditions. a) Displacement restriction on all the holes, b) displacement restriction on the two outer holes and c) displacement restriction on just one of the outer holes. The plates are 595 mm in the radial direction and 19 mm thick.

Source: The Authors

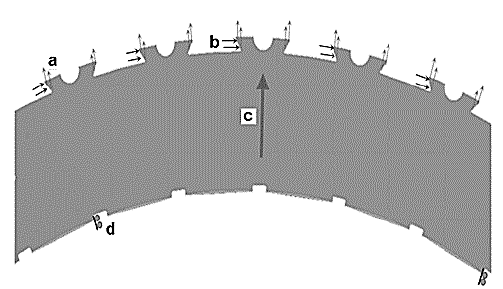

Fig. 4 shows a section of the model of the complete ring where the loads and boundary conditions are presented. The radial load transferred from the poles, which includes the centrifugal force of the pole and the magnetic pull force, was applied to the dovetail surface in the radial direction (Fig. 4a). On the same surface in the tangential direction, the load equivalent to the torque was applied (Fig. 4b). The centrifugal force of the ring was also included in radial direction (Fig. 4c). The rotor rim has 40 grooves, but only eight of them are coupled to the rotor spoke. Therefore, only on eight of the 40 groves, the restriction boundary condition was applied in the radial direction to bear the torque (Fig. 4d). Loads and boundary conditions for the second model including the holes were the same as those for the first model.

Figure 4: Section of the rotor rim (from the full model) showing loads and boundary conditions: a) radial force transferred from the poles, b) tangential force, c) centrifugal force, d) restriction of displacement in tangential direction at the keyways where the rotor rim is coupled with the rotor spoke. The external diameter of the rotor rim is 6589 mm, and the internal diameter is 5399 mm.

Source: The Authors.

2.3.3. Rotor spoke

The rotor spoke (Fig. 5) is formed by two circular plates at the top and the bottom (Fig. 5a), eight vertical beams that work as wedges that are assembled with the keyways of the rotor rim (Fig. 5b), eight L-shaped vertical plates welded to the top and bottom circular plates that serve as structural reinforcement and work as the blades of a fan that is part of the cooling system of the machine (Fig. 5c), a ring welded to the bottom plate and to the L-shaped plates (Fig. 5d), and eight tubes welded to the L-shaped plates and the upper plate (Fig. 5e). The bottom plate has holes to allow for air circulation and keyways to transfer torque from the shaft.

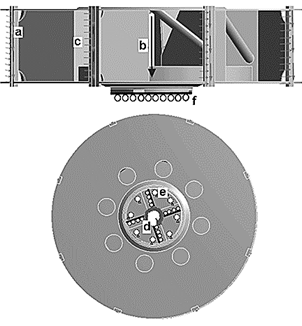

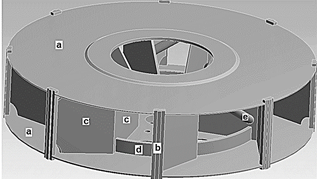

Figure 5: Geometry of the rotor spoke: a) upper and bottom circular shaft, b) vertical beams with wedges to assemble the rotor rim, c) L-shaped plates, d) rim welded to the bottom circular plate, e) tube welded to the L-shaped plate and the upper circular plate. The external diameter of the rotor spoke is 5399 mm, and the internal diameter is 700 mm. Magnetic flux density distribution in the air gap.

Source: The Authors.

The loads and boundary conditions for the rotor spoke are shown in Fig. 6. The weight of the poles and rotor rim was applied to the vertical beams in the vertical direction (Fig. 6a). The weight of the rotor spoke was also considered (Fig. 6b). A tangential force equivalent to the torque was applied on the face of the wedge (Fig. 6c). The centrifugal force produced by the rotation was included as a rotational speed (Fig. 6d). The tangential displacement on the keyways was restricted to bear the torque (Fig. 6e). Finally, the displacement in the vertical direction was restricted at the region where the rim is coupled with the rotor shaft (Fig. 6f).

Figure 6: Loads and boundary conditions of the rotor spoke: a) weight of the poles and rotor rim, b) own weight of the rotor spoke, c) tangential load equivalent to the torque, d) angular speed of the rotor, e) restriction of displacement in tangential direction to bear the torque, f) restriction of displacement in vertical direction.

Source: The Authors.

3. Results and discussion

3.1. Stress measurement on the shaft

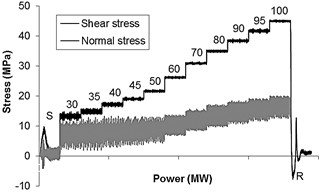

The measured axial and shear stresses are presented in Fig. 7 for the start of the machine, power ranging from 30 to 100 MW and during load rejection. Normal stresses during load rejection were not registered due to technical problems. The number on each step of shear stress corresponds to the respective generated power. The average torque and axial load calculated from the registered stresses are presented in Fig. 8. A more detailed description of these experimental results can be found in our previous paper [18]. Here, we only include these results because the measured average torque was applied on the models of the pole, rotor rim and rotor spoke as a load. The fluctuations of the stresses around the average value observed in Fig. 7 for each power level were not considered in the models because in our previous paper, we found that the damage produced on the shaft by the fluctuation was small in comparison with the change of power level.

Figure 7: Shear and normal stresses with the machine working at power between 30 and 95 MW. The number on each step corresponds to the generated power in MW. S corresponds to the start of the machine, and R corresponds to load rejection.

Source: The Authors.

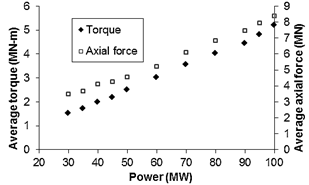

Figure 8: Average torque and axial force as a function of generated power.

Source: The Authors.

3.2. Rotational speed results

Fig. 9 shows the rotational speed of the machine during load rejection. Prior to load rejection, the machine had a rotational speed of 180 rpm. Immediately after load rejection, the speed increased to a value of approximately 270 rpm and then decreased again to the nominal speed. This increase in the speed is important because it increases the centripetal force and therefore must be included in the numerical models, especially at the poles since they are the furthest pieces from the rotation axes and thus experience the highest centripetal force.

Figure 9: Rotational speed of the machine during load rejection.

Source: The Authors.

3.4. Modeling results

3.4.1. Magnetic pole

The critical point on the poles was the rounded region at the end of the dovetail (Fig. 10). Referring to a cylindrical coordinate system centered at the center of the machine, the radial stress (σ _r) and shear stress (σ _rθ ) are presented in Table 3 for the evaluated load cases. The other components of the stress tensor were considerably smaller. In addition to electrical failures, overspeed was found to produce an important increase in stresses. This can be explained by the location of the pole with respect to the rotor. As it is located far from the rotation axes, high centrifugal forces are produced during overspeed due to the high turning radius.

The maximum displacement at the pole obtained from the model simulated at 30 MW was 2.35 mm. This result is inside the measured results (Table 2), which can be seen as a validation for the model.

Figure 10: von Mises stress on the pole showing the critical point at the end of the dovetail.

Source: The Authors.

Table 3: Stresses (MPa) at the root of the dovetail region of the pole for the evaluated load conditions.

Load	σ r (MPa)	σ rθ (MPa)
Overspeed 1.5X	172.1	90.6
60 MW	107.1	54.0
80 MW	125.5	55.7
95 MW	146.6	58.6
Ground-phase failure	206.1	65.0
Phase-phase failure	216.1	70.5

Source: The Authors.

3.4.2. Rotor rim

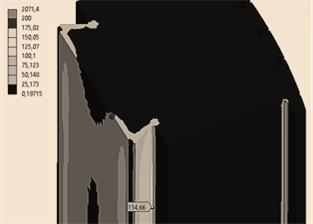

Two critical regions were found for the rotor rim: the rectangular grooves where the rotor spoke is assembled (Fig. 11a) and the dovetail where the pole is assembled (Fig. 11b). Greater stresses were found at the dovetail. The second model, which included the holes, showed some stress concentration at the holes, but those stresses were smaller than the stresses at the grooves shown in Fig. 11. Therefore, they were no longer considered. Table 4 presents the stresses at the dovetail for the evaluated load conditions. For the rotor rim, overspeed was found to be the more critical event because it produces the highest stresses.

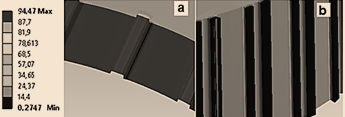

Figure 11: von Mises stress at critical points in the rotor rim: a) keyway to the rotor rim assembly with the rotor spoke, b) dovetail to the magnetic pole assembly.

Source: The Authors.

Table 4: Stress components (MPa) at the critical points of the rotor rim for the evaluated load conditions.

Load	σ r (MPa)	σ rθ (MPa)
Overspeed 1.5X	163.8	56.4
60 MW	94.3	29.8
80 MW	94.5	29.9
95 MW	94.8	30.1
Ground-phase failure	98.9	31.3
Phase-phase failure	107.3	33.9

Source: The Authors.

3.4.2. Rotor spoke

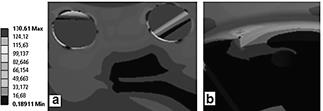

Two critical regions were found at the rotor spoke: the holes of the ventilation systems (Fig. 12a) and the keyway used to transfer the torque from the shaft (Fig. 12b). However, the maximum stresses were found at the ventilation holes. Table 5 presents the stresses on the ventilation holes. In the rotor spoke, the stresses were strongly dependent on the power level and the torque produced during failures created a notable increase in stresses. In contrast with the pole and rotor rim, rotational speed did not affect stresses in a notable way. This result is reasonable since the relative location of the poles is opposite to the critical region of the rotor spoke; the ventilation holes are close to the rotation axes, while poles are at the furthest location. Additionally, it is important to note that the rotor rim does not transfer radial loads to the rotor spoke because the rectangular grooves transfer only tangential load.

Figure 12: Regions with maximum von Mises stresses at the rotor spoke: a) holes used for ventilation at the bottom of the rotor spoke, b) keyway at the bottom of the rotor spoke with the wedge used to transfer torque from the shaft.

Source: The Authors.

Table 5: Stress components in MPa at the critical points of the rotor spoke for the evaluated load conditions.

Load	σ r (MPa)	σ rθ (MPa)
Overspeed 1.5X	42.5	39.4
60 MW	45.8	42.7
80 MW	57.7	53.9
95 MW	69.7	65.0
Ground-phase failure	232.7	217.3
Phase-phase failure	572.6	534.8

Source: The Authors.

3.5. Fatigue life

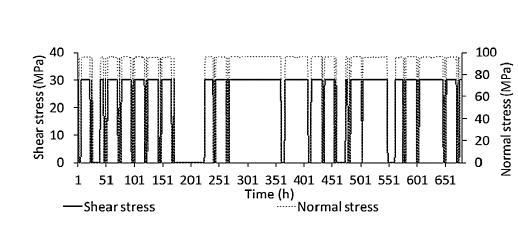

Stresses obtained for the evaluated power levels for every mechanical element were interpolated to obtain the stresses at every power level in the generation history. With the interpolated stresses and the generation history, a stress history was obtained for every element. As an example, Fig. 13 shows a stress history during one month obtained for the dovetail of the pole.

Figure 13: Stress history at the dovetail of the pole during one month of normal operation.

Source: The Authors.

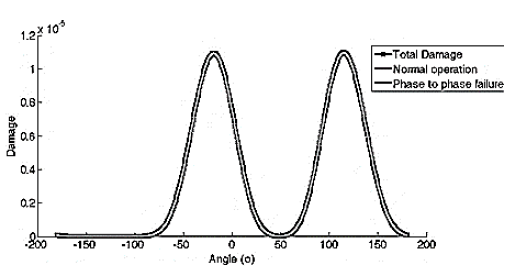

The calculated damage at the pole under normal operation for one year is presented in Fig. 14. In the same figure, the damage produced by one phase-to-phase failure and the total damage (normal operation plus one failure) are presented

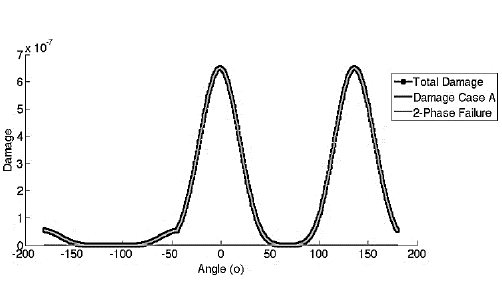

Figure 14: Damage produced at the dovetail of the pole under normal operation and including one phase-to-phase failure. The maximum damage was found at a plane rotated 115° with respect to the polar coordinate system shown in Fig. 2.

Source: The Authors

With the damage obtained for normal operation, the estimated fatigue life was 91240 years. Including one phase-to-phase failure, the life was reduced in only 83 years, which means a small influence of this failure on fatigue life. Similar results were obtained for phase-to-ground failure and overspeed.

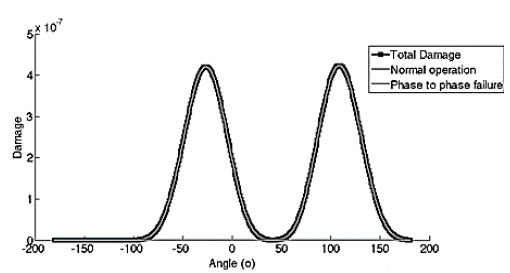

Damage at the dovetail of the rotor rim under normal operation and including one phase-to-phase failure is presented in Fig. 15. With the calculated damage, under normal conditions, the estimated fatigue life was 2.3 million years. The inclusion of one phase-to-phase failure reduced the life in 1671 years. Similar results were found for ground-to-phase failure and overspeed.

Figure 15: Damage at the rotor rim dovetail for one year of normal operation and with one phase-to-phase failure. The maximum damage was located at an angle of 108 degrees with respect to the polar coordinate system.

Source: The Authors

Damage at the ventilation holes of the rotor spoke under normal operation and with one phase-to-phase failure is presented in Fig. 16. The calculated life under normal operation was 1.539 million years. The inclusion of one phase-to-phase failure subtracts 5665 years of fatigue life.

Figure 16: Damage at the ventilation holes of the rotor spoke produced under normal operation and including one phase-to-phase failure. The maximum damage was located at 136° with respect to the polar coordinates.

Source: The Authors

Table 6 summarizes the fatigue life obtained for the three analyzed elements under the four working conditions. These results indicated that the three elements are practically working under an infinite life regime. However, these results have to be improved by including the actual mechanical properties of the materials for each of the studied elements since in this study, mechanical properties taken from the literature were used. Additionally, the corrosion rate and temperature should be included as well as strain measurements at the rotor spoke, rotor rim and pole to cover the vibration contribution in the fatigue damage study.

Table 6: Fatigue life (years) for the three analyzed elements under the four working conditions.

	NO*	Overspeed	PGF**	PPF***
Pole	91240	91157	91240	91157
Rotor rim	2.36E+06	2.35E+06	2.35E+06	2.35E+06
Rotor spoke	1.539E+06	1.539E+06	1.539E+06	1.539E+06

* Normal operation, ** Phase-to-ground failure, *** Phase-to-phase failure

Source: The Authors.

Special attention should be paid to the case of the rotor spoke since it includes welding for joining its different parts. In this study, the fatigue life of the ventilation holes where numerical models showed important stresses was analyzed. However, even if welding presents smaller nominal stresses around it, its fatigue life should be analyzed based on the experimental data of fatigue life for joints with similar configurations. To achieve this, stress measurements around the welds may be needed to perform an analysis by using the nominal stress approach [25]. However, stress measurements inside the rotor may be challenging since a magnetic field might affect the strain gauge signals.

4. Conclusions

Stresses at the dovetail of the pole and the rotor rim were strongly affected by the overspeed of the machine. On the other hand, overspeed did not affect stresses on the ventilation hole of the rotor spoke where stresses were more affected by electrical failures.

With the mechanical properties borrowed from the literature, it was found that the piece with the shortest fatigue life is the pole. However, even this element was found to be working at an infinite life regime.

Further research is needed to determine the actual mechanical properties of the elements and quantify the stresses close to welds in the rotor spoke to improve the fatigue life estimation.
