2.1. Preparation of CH/PVA membranes

A 1% (w/v) chitosan (CH) solution (Sigma Aldrich percentage deacetylation >75%) was solubilized in 1% (v/v) acetic acid (Merck) by magnetic stirring during 3 hours at room temperature until completing homogenization. Parallelly, 5% and 10% of Polyvinyl Alcohol (PVA) (Sigma Aldrich, 98% hydrolyzed) solutions were prepared varying the concentration for 5 and 10% (w/v), dissolving PVA in distilled water under constant stirring for 2 hours at 70°C.

To prepare membranes, solutions of Polyvinyl Alcohol and Chitosan were mixed for each concentration of PVA with magnetic stirrer during 30 min, to which relations 30/70, 50/50 and 70/30 v/v PVA/CH were varied; then the mixtures were molded to 60x15mm forms and isolated in the aeration chamber at room temperature for 24 hours to remove bubbles formed during the process. Upon completion, the mixtures were taken to the oven for 8 days at 40°C. Finally, dried membranes are removed from Petri dishes and labeled. All membranes were made in triplicate for each ratio of PVA/CH used.

2.2. Characterization of PVA/CH membranes

Obtained membranes were characterized by Fourier Transform Infra-Red (FTIR) on a Perkin Elmer Spectrum One model with a DTGS detector, with a wavelength range between 4000 and 400 cm^-1 to observe the composition of present functional groups and to identify the corresponding bands of PVA/CH composite both membranes and hydrogels.

Morphological characterization of the membrane structure was carried out with Scanning Electron Microscopy (SEM) using a JEOL JSM 6490 LV microscope. Samples were fixed in a graphite tape, underwent a thin gold coating using vapor deposition techniques on a Denton Vacuum Desk IV computer and were analyzed under high vacuum mode. The surface was then scanned using 2000X and 5000X magnification in order to evaluate surface morphology and porosity of hydrogels before and after being embedded in a 2% Aloe Vera solution.

2.3. Mechanical tests

Specimens were prepared in tape form with dimensions of 114mm x 29mm of each PVA/CH (30/70, 50/50 and 70/30) sample with 5% and 10% PVA (as specified by the ASTM D882-09 [10] to polymers with thickness below 1mm), and brought to the Universal Testing Machine (DIGIMESS) using a 500 N load distribution and a 5 mm/min tension strain rate, to assess the mechanical properties of the crosslinked membranes. The ultimate strain and stress (from the point of failure), the modulus (from the slope of the linear region), and the Yield Strength were calculated from pattern and specimens prepared with various PVA percentages.

2.4. Aloe Vera absorption test

For this assay, a membrane with 22mm x 21mm dimensions was extracted, and it in turn was divided into three 22mm x 7mm fractions in order to carry out each test in triplicate. Each of the fractions was soaked in a 2% Aloe Vera solution (Cristaloe() for 48 hours. Weight change measurements were performed in an electronic balance during two hours in order to achieve stability.

2.5. Antibacterial activity test

Antibacterial activity of PVA/CH hydrogels was carried out in the presence of two bacterial species: Staphylococcus Aureus (S. Aureus) and Escherichia Coli (E.Coli), placing hydrogels on 5mm diameter discs which were previously sterilized with ethylene oxide. Discs were embedded in a 2% Aloe Vera solution, seeded in agars inoculated with the bacterial strains in nutritive agar, and underwent incubation for 24 hours at 37°C. Hydrogel antibacterial inhibition was determined by measuring the diameter of each clear zone around the gel in millimeters, using a ruler. All of the operation procedures were carried out under aseptic conditions.

3.1. Appearance of PVA/CH membranes

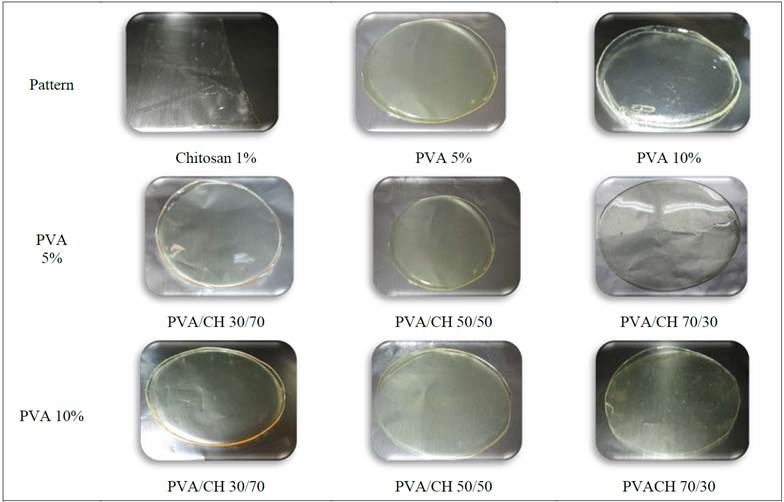

Fig. 1 shows the appearance of PVA/CH membranes for several concentrations of PVA. As shown in Fig. 1, obtained membranes are transparent, homogeneous and inflexible, have good consistency and their thickness is fairly uniform. After visual and tactile inspection, it is possible to determine that membranes with the lower PVA proportion are less rigid than the membranes with a higher PVA proportion. The conditions reported in the obtained membranes are similar to those reported by Zhao, [11] and León [12].

Figure 1: Photographs of PVA/CH membranes and pattern

Source: The Authors.

3.2. Characterization of PVA/CH membranes and pattern

Infrared spectra of the pattern and PVA/CH dry membranes (before imbibition in a 2% Aloe Vera solution) can be seen in Fig. 2.

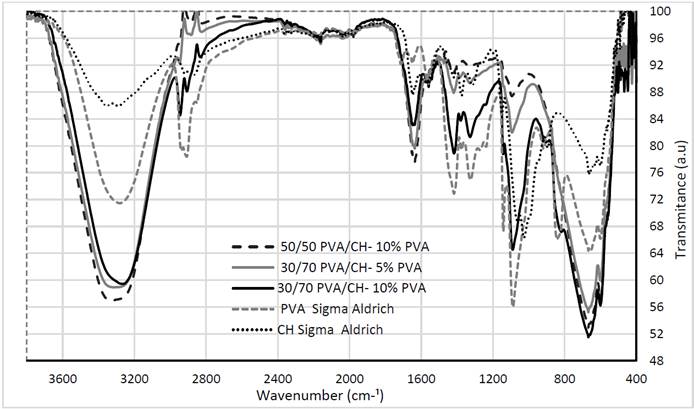

Figure 2: FTIR spectra of the standard membrane and crosslinking membranes

Source: The Authors

Membranes made with pattern materials present typical bands and the pure PVA has a band between 3600 and 3100 cm^-1 associated with the stretching of OH^- groups due to the strong hydrogen bonds, whereas the band located between 2950 and 2850 cm^-1 refers to alkyl group (CH). In the chitosan spectrum, the band between 3600 and 3200 cm^-1 is attributed to the extent of OH^- and NH, and the band at 1655 cm^-1 corresponds to stretching in the amide I (C=O) NH₂ for 1580 cm^-1, and the band 1313 cm^-1 corresponds to the amide III. All these correspond to what has been reported in the literature for both polymers [13].

PVA/CH membranes present increase in the bands between 3200 and 3600 cm^-1 of the OH and NH₂ groups (with increasing percentage of chitosan and PVA) and bands between 2930 and 2850 cm^-1 can be observed. However, in terms of chitosan amine NH_2, the displacement of the absorption band at 1580 cm^-1 indicates that the amine interacts with the OH- groups of PVA

Interaction among amine groups (~ 800 cm^-1) and chitosan anomeric groups is evident, There are also bonds between double chains belonging to both molecules, which is evidenced by marked changes in transmittance, which shows a marked cross-linking of the molecules in these areas.

Pattern and PVA/CH hydrogels FTIR after imbibition in a 2% Aloe Vera solution can be seen in Fig. 3.

Figure 3: FTIR spectra of the standards and crosslinking samples embedded at 2% Aloe Vera

Source: The Authors.

Fig. 3 shows how the band of OH^- of PVA in 3300 cm^-1 lose definition for overlap with the C-H bonds of chitosan; a decrease in transmittance showing the formation of molecular bonds (crosslinking) is also evidenced. Thus, the PVA/CH 30/70 -10% PVA sample is above the PVA/CH 30/70 -5% PVA sample and in turn, the sample lies above the PVA/CH 50/50 -10% PVA. This could be attributed to the amount of water in the Aloe Vera solution, which reacted with the PVA and CH and incorporated itself into the interstitial spaces created by the polymeric network.

An increase is observed in the transmittance of the bonds between 2800 and 3000 cm^-1, denoting the formation of new peaks with greater transmittance, showing that these links were lost in the neo molecule formed of PVA/CH-Aloe Vera in lower proportion to PVA/CH 30/70 -10% PVA and increased in PVA/CH 50/50 -10% PVA and PVA/CH 30/70 -5% PVA samples.

Similarly, the formation of a carboxylic bond in the region of 1600 cm^-1 is possibly due to the fact that Aloe Vera’s aromatic groups reacted with PVA and Chitosan, decreasing transmittance in this area, showing a molecular bond, higher for PVA/CH 50/50 -10% PVA hydrogel, followed by PVA/CH 30/70 -5% PVA and finally PVA/CH 30/70 -10% PVA.

Changes were seen in PVA C-O-C bonds in 1000-1300 cm^-1 and chitosan amide bond III (1250-1360 cm^-1). It can be seen that PVA/CH 30/70 -10% PVA hydrogel retains the defined shape of these peaks similarly to PVA, although transmittance increases, but in smaller amounts for the other two, showing a molecular link between the C-O-C and the chitosan amide bond.

Fig. 4 shows images obtained with Scanning Electronic Microscopy of membranes prepared varying PVA/CH with different percentages of PVA.

Figure 4: SEM images of PVA/CH membranes before and after imbibed at Aloe Vera

Source: The Authors.

Before imbibing them in a 2% Aloe Vera solution (above), the texture of PVA/CH membranes is highly uniform and homogeneous, very similar in appearance, a fact that demonstrates the high reproducibility of the process. Apparent roughness or porous structures cannot be noticed, in accordance with the structure of the samples reported by Nagahama [14].

Fig. 4 show the action of Aloe Vera in the cross-linked network (down), which changes completely their morphology and appearance when compared to microscopy obtained in trials with the membranes (above images). Hydrogels imbibed in a 2% Aloe Vera solution show a highly porous morphology in the 50/50 PVA/CH -10% PVA hydrogel. Pores show different sizes, ovoid shapes and interconnections among them, which presumably means this hydrogel has good features to promote cell growth.

The 30/70 PVA/CH -5% PVA hydrogel shows flake-type morphology, and it is more widespread in the whole sample of the material; it also shows that the hydrogel can promote cell growth due to its morphology. It can be seen that 30/70 PVA/CH -10% PVA hydrogel also has a porous morphology, although this is not homogeneously distributed throughout the material. If compared to that observed before immersion, the change observed in the internal structure of these hydrogels is significant, because when entering the Aloe Vera solution on the network of each hydrogel, its porosity and morphology are not so flat and homogenous, and shows the structure formed by the PVA/CH.

All this indicates that, although the variation is small, the PVA/CH relation used can cause morphological changes. In addition, the structure obtained in these hydrogels enables cell growth, thanks to its porosity, as is described by De la Torre [4] and Sanchez [15]. When crosslink of PVA/CH increases; the porosity of hydrogel and the water diffusion into hydrogel also increases in agreement with Wikanta [16].

3.3. Mechanical tests

Different changes in chitosan’s crosslinking degree have been used to achieve desired mechanical properties in the membranes. Increasing the system’s crosslinking degree will result in stronger membranes. However, a higher crosslinking degree produces a more brittle structure. Hence, there is an optimum crosslinking degree to achieve relatively strong and elastic hydrogels [17]. Mechanical tests of chitosan membranes are showed in Fig. 5 and their properties in Table 1, both comparing pure chitosan and cross-linked membranes.

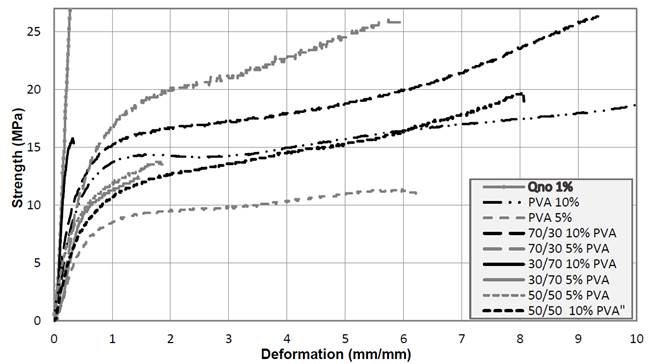

Figure 5: Stress-strain curve of PVA/CH membranes

Source: The Authors.

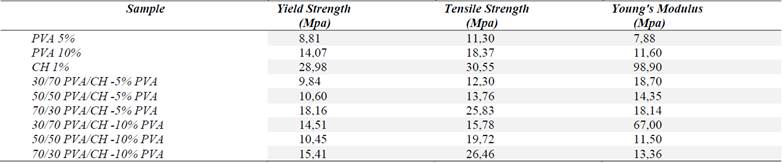

Table 1: Mechanical properties of PVA/CH membranes

Source: The Authors.

PVA/CH membranes for 5 and 10% PVA exhibited lower tensile strength, compared to pure chitosan, which can be attributed to the three-dimensional porous structure of the membrane for obtained crosslinking, in accordance with Zhao [11].

Similarly, to other tensile properties, it was found that the modulus generally increased with the increasing of chitosan percentage. Samples prepared at 5% PVA showed a higher Young modulus for 30/70 PVA/CH and 70/30 PVA/CH membranes, followed by 50/50 PVA/CH; this can be attributed to a less efficient crosslinking rate between PVA and chitosan. This means that as the chitosan network increases, the mechanical properties increase becoming most rigid the membrane, which is consistent with results reported by Cabrera [18] and De Souza [19].

In agreement with Drury [20], PVA/CH stress-strain curves were highly dependent on the strain rate, which is indicative of a viscoelastic material, which exhibits a nonlinear behavior, generally observed in tensile tests of synthetic fibers, tendons, and ligaments.

It is relevant to compare the mechanical properties of chitosan membranes and cross-linked membranes with the mechanical properties of tissues. The absolute values for the

ultimate stress and modulus of cross-linked membranes are several orders of magnitude smaller than non-mineralized tissues, as skin or muscle (KPa versus MPa) [21]. This suggests that chitosan is mechanically too weak to be used as a replacement for tissues, so it can be improved with PVA addition.

The results of the tensile test show that the CH membranes are more rigid, have higher Young's modulus, yield strength and Tensile Strength compared to pure PVA samples. While for PVA/CH membranes, values of yield strength and Tensile Strength are lower, but when the PVA/CH relation increases, tensile strength increases according as PVA concentration increases. Samples with PVA/CH -10% PVA showed a yield rate similar to the pattern of 10% PVA, as shown in the Table 1.

3.4. Aloe Vera absorption

Fig. 6 shows the absorption capacity of evaluated membranes. According to swelling experiments, membranes absorbed water very quickly, reaching a swelling equilibrium during the first 3 hours, with an increase in volume appreciably noticed by visual inspection of the samples, in agreement with Tang [22].

Figure 6: Absorption percentage of hydrogels at 2% Aloe Vera through time

Source: The Authors.

Water absorption of hydrogels may be supported by hydroxyl groups of PVA and amino groups of chitosan, which interact with water molecules through hydrogen bond, and by the presence of a porous network in the hydrogel. Chitosan’s absorbing rate is highly improved by the presence of PVA, and its value is not dependent of the PVA/CH ratio, in agreement with Borzacchiello [23].

Fig. 6a shows that the CH sample absorbs more water in its network (almost 8 times its weight). PVA patterns showed an increase in absorption of approximately 50%, the 10% PVA hydrogel was more stable through time.

The CH hydrogel showed a tendency to continue absorbing, and the 5% PVA hydrogel showed a tendency towards desorption, with lower absorption values at 48 hours. This water absorption may be supported by hydroxyl groups of PVA and amino groups of CH which interacted with water molecules through hydrogen bond, and by the presence of a porous network in the hydrogel.

Cross-linked hydrogels (Fig. 6b and 6c) show greater absorption capacity when the PVA is at higher concentrations, indicating a suitable cross-linking among molecules, in agreement with Wikanta [16]. Fig. 6b for 5% PVA hydrogels shows that the 30/70 PVA/CH hydrogel is the worst of the three hydrogels with other PVA/CH relationships, as the other two fractured in 6 hours after starting absorption, while 70/30 and 50/50 PVA/CH -5% achieving a 75% water gain, with an appropriate texture and transparency suitable for medical use.

Fig. 6c shows the good performance of 50/50 PVA/CH and 70/30 PVA/CH at 10% PVA hydrogels. The absorption curve of the 70/30 PVA/CH hydrogel achieves high absorption values near 80%, but shows a tendency to continue absorbing; despite having achieved a 60% absorption, the 30/70 PVA/CH hydrogel is stable after 48 hours, reaching stability value at 16 hours.

While 50/50 PVA/CH hydrogel showed a good performance and stability at 48 hours, its texture is less rigid than the 70/30 PVA/CH, and takes a whitish, translucent and is not restored once with the solution of Aloe Vera, a situation that is not considered feasible for the observation of the wound during treatment, enforcement is sought with this study.

The comparison between chitosan membrane and PVA/CH crosslinked membranes has shown a water percentage decrease in the total mass of wet membrane. An average of 80% for chitosan membrane versus 50% for crosslinked PVA/CH membrane could be observed. This result confirms how water absorption is drastically changed by the PVA percentage incorporated, in agreement with that reported by Beppu [24].

3.5. Antibacterial activity

Fig 7 shows Inoculation of PVA/CH discs in bacterial cultures: Left: E. Coli, right: S. Aureus for 24 hours.

The clear zones diameter formed represent PVA/CH hydrogel the inhibition activity tested. Samples were analyzed in order to reveal the antibacterial activity of 30/70 PVA/CH for PVA 5 and 10%, and 50/50 PVA/CH-10% PVA embedded in a 2% Aloe Vera solution. After incubation, it was only possible to see bacteriostatic activity for S. Aureus, for a period of 8 hours in lower content PVA (30/70 PVA/CH -5%), as can be seen in Fig. 7c.

Figure 7: Inoculation of PVA/CH discs in bacterial cultures: Left: E. Coli, right: S. Aureus

Source: The Authors.

After this period, S. Aureus proliferates normally. After 24 hours, all samples showed no bacterial growth inhibitory halo, or bacteriostatic, both for S. Aureus and E. Coli, according to that reported by Wikanta [16], also pattern culture medium solution Aloe Vera showed a slight bacterial growth could be due to environmental pollution, despite all the media were sterilized and previously worked in older aseptically.

Those results differ from findings reported by Leon [12], in which other zones of inhibition of bacterial growth of S. Aureus in PVA/CH hydrogels with Dragon's blood solution were presented, and these films only exhibited activity against S. Aureus, while in this study no bacteriostatic or bactericidal activity was not presented to E. Coli.

The positive and negative patterns behaved as expected; there was growth in negative pattern and showed the halo of inhibition in the positive pattern for S. Aureus and E. Coli.

Results showed that all hydrogels containing PVA/CH inhibited the growth of the bacteria tested with bigger inhibition zone than pattern hydrogel. The antibacterial properties of hydrogel containing chitosan are due to a positive charge of the amino groups in chitosan, and to its ability to bind to a negative charge in bacteria, and its effectiveness did not depend solely on the chitosan formulation but also on the type of fungus [25,26].
