Modification of Charpy machine for the acquisition of stress-strain curve in thermoplastics
Modificación de máquina Charpy para la adquisición de la curva esfuerzo-deformación en termoplásticos
Palabras clave:Mechanical properties, thermoplastics, tension-impact testing equipment, computational simulation LS-DYNA (en)
Propiedades mecánicas, termoplásticos, equipo de pruebas de impacto-tensión, simulación computacional en LS-DYNA (es)
Simulations of impact events in the automotive industry are now common practice. Vehicle crashworthiness simulations on plastic components cover a wide range of strain rates from 0.01 to 500 s-1. Because plastics mechanical properties are very dependent on strain rate, developing experimental methods for generating stress-strain curves at this strain rate range is of great technological importance. In this paper, a modified Charpy machine capable of acquiring useful information to obtain the stress-strain curve is presented. Strain rates between 300 to 400 s-1 were achieved. Three thermoplastics were tested: high-density polyethylene, polypropylene-copolymer and polypropylene-homopolymer. Impact simulations using LS-DYNA were performed using the acquired high-strain rates stress-strain curves and compared with experimental data. Simulations using stress-strain curves from quasi-static tests were also performed for comparison. Very good agreement between the simulation and experimental results was found when the ASTM D1822 type S specimen was used for testing each material.
Las simulaciones de impacto en la industria automotriz son ahora una práctica común. Simulaciones de componentes plásticos en choques de vehículos cubren una amplia gama de velocidades de deformaciones de 0.01 a 500 s-1. Debido a que las propiedades mecánicas de los plásticos dependen de la velocidad de deformación, el desarrollo de métodos experimentales para generar curvas de esfuerzo-deformación en este rango de velocidad es de gran importancia tecnológica. En este artículo, se presenta una máquina Charpy modificada capaz de adquirir información útil para obtener la curva de esfuerzo-deformación. Se lograron tasas de deformación entre 300 y 400 s-1. Se probaron tres termoplásticos: polietileno de alta densidad, polipropileno copolímero y polipropileno homopolímero. Simulaciones de impacto utilizando LS-DYNA se realizaron utilizando las curvas de alta velocidad de deformación adquiridas y se compararon con datos experimentales. También se realizaron simulaciones utilizando curvas de esfuerzo-deformación de pruebas cuasiestáticas para comparación. Se encontraron muy buenos resultados entre la simulación y los resultados experimentales cuando se usó la muestra ASTM D1822 tipo S para analizar cada material.
Recibido: 12 de noviembre de 2019; Revisión recibida: 28 de febrero de 2020; Aceptado: 13 de marzo de 2020
Simulations of impact events in the automotive industry are now a common practice. Vehicle crashworthiness simulations on plastic components cover a wide range of strain rates from 0.01-500 s-1. Because plastic mechanical properties are very dependent on strain rate, developing experimental methods for generating stress-strain curves at this strain rate range is of great technological importance. In this paper, a modified Charpy machine capable of acquiring useful information to obtain the stress-strain curve is presented. Strain rates between 300-400 s-1 were achieved. Three thermoplastics were tested: high-density polyethylene, polypropylene-copolymer and polypropylene-homopolymer. Impact simulations using LS-DYNA were performed using the acquired high-strain rates stress-strain curves and compared with experimental data. Simulations using stress-strain curves from quasi-static tests were also performed for comparison against high-speed. Very good agreement between the simulation and experimental results was found when the ASTM D1822 type S specimen was used for testing each material.
Keywords:mechanical properties, thermoplastics, tension-impact testing equipment, computational simulation LS-DYNA.
Las simulaciones de impacto en la industria automotriz son ahora una práctica común. Modelaciones de componentes plásticos en choques de vehículos cubren una amplia gama de velocidades de deformaciones de 0.01-500 s-1. Debido a que las propiedades mecánicas de los plásticos dependen de la velocidad de deformación, el desarrollo de métodos experimentales para generar curvas de esfuerzo-deformación en este rango de velocidad es de gran importancia tecnológica. En este artículo, se presenta una máquina Charpy modificada capaz de adquirir información útil para obtener la curva de esfuerzo-deformación. Se lograron velocidades de deformación entre 300-400 s-1. Se probaron tres termoplásticos: polietileno de alta densidad, polipropileno copolímero y polipropileno homopolímero. Simulaciones de impacto utilizando LS-DYNA se realizaron utilizando las curvas de alta velocidad de deformación adquiridas y se compararon con datos experimentales. También se realizaron simulaciones utilizando curvas de esfuerzo-deformación de pruebas cuasi-estáticas para comparación contra las de alta velocidad. Se encontraron muy buenos resultados entre la simulación y los resultados experimentales cuando se usó la muestra ASTM D1822 tipo S para analizar cada material.
Palabras clave:propiedades mecánicas, termoplásticos, equipo de pruebas de impacto-tensión, simulación computacional en LS-DYNA.
Plastics are increasingly used in everyday life as they offer advantages such as low production cost, light weight, corrosion and chemical resistance, toughness and durability. Because of their versatility, and the fact that they can be tailored to suit specific demands, they have found a broad range of applications in the transportation market [1,2]. It has been reported that the use of both thermosets and thermoplastics in passenger vehicles has grown from approximately 30 kg per vehicle in 1960 to about 180 kg in 2010 with a potential to increase up to 400 kg in 2050, which represents about 10-12% plastic’s weight in a midsize vehicle and up to 50% in volume [3-5]. Engineering plastics are used in instrument panels, knee bolsters, interior trims, fuel tanks, bumpers and other vehicle applications.
Simulations of crash events or crashworthiness predictions for the automotive industry are now a common practice. However, finite element modeling developed by the Federal Motor Vehicle Safety Standards, and other safety related procedures, were initially developed to fit more traditional materials, such as metals [6-9]. Plastics have very different properties to metals. For crashworthiness predictions, the effect of the strain rate on the deformation behavior of the polymer is a key concern, as the stress-strain curves are the main required input in dynamic finite element analyses, and they are very dependent on strain rate. Vehicle crashworthiness simulations on plastic components cover a wide range of strain rates from 0.01 to 500 s-1, and therefore, developing experimental methods for generating stress-strain curves at these strain rates is of great technological importance [8,10-13].
Nowadays, the behavior of materials subjected to high strain rates can be studied using five types of testing systems: the conventional screw drive load frame and servo-hydraulic systems can provide strain rate dependent data up to 1 s-1, the high rate servo-hydraulic system and impact tester up to 1,000 s-1, while the Hopkinson bar may be used to generate data at the high end, up to 10,000 s-1 [7,14-20]. Although the high rate servo-hydraulic system has been used to generate data in this range of strains (0.01-500 s-1), it has been reported that specific parameters such as the strain rate sensitivity, temperature sensitivity and strain distribution have to be considered in order to obtain accurate results when dealing with plastics. For the case of the Hopkinson Bar, the experimental techniques to obtain stress- strain data at the medium strain rate range of 1-100 s-1 are not well established [19,21,22].
In this paper a Charpy machine is modified and instrumented with the aim of acquiring displacements and accelerations to obtain the conventional stress-strain curves of three thermoplastics in the range of 300-400 s-1.
2. Experimental procedure
Three different thermoplastics provided by Formosa were analyzed in this study: poplypropylene-copolymer 6610A (PP-Co), polpropylene-homopolymer 4100N (PP-Ho) and high-density polyethylene LH5320 (HDPE). Further comparison based on experimental results of laboratory tests will be presented at section 3.1.
2.2. Quasi-static test
Specimens of ASTM D638 type V tensile dumbbell-shape samples (Fig. 1a) were die cut from 3 mm thick injection molded plates. Quasi-static uniaxial tension was conducted on an INSTRON 3343 universal testing machine at a constant displacement rate of 5 mm/min and at room temperature (27°C). Five replications per material were performed. The elastic modulus, E, yield strength at 0.2% offset, σ y , maximum strength, σ max , and percent elongation at break or rupture strain, e break , were calculated (see section 3.1). Because the specimen of Fig. 1a there is no a gage length zone, it was taken as the initial length equal to the specimen of Fig. 1b to facilitate comparison.
2.3. High-strain rate tests
2.3.1. Apparatus description
In the ASTM D1822 tensile-impact energy standard test method  for breaking plastics and electrical insulating materials, the energy to fracture a specimen by shock in tension is determined by the kinetic energy extracted from the pendulum of an impact machine in the process of breaking the specimen. Qualitatively, it is reported to present intermediate strain rates when compared with the high rate of the Izod test (ASTM D256 standard ) and the low rate of the common tension test (ASTM D638 standard ), and thus, its principle was selected as the basis of this research.
The head pendulum of a Charpy machine was modified in agreement with ASTM D1822 standard for tensile-impact testing. One of the specimen’s end is attached to the pendulum head with a bolt as shown in Fig. 2. In the other end, a longer bolt is attached. When the pendulum is released, the longer bolt hits the anvil at the bottom of the pendulum trajectory, and at that point the tensile-impact event starts: one end of the specimen is tensed by the pendulum head that continues its travel and the other end is constrained by the anvil.
The machine is instrumented to acquire acceleration and displacement data, enabling to obtain the stress-strain curve. A Dytran 2W033 accelerometer with a frequency response of 51.2 kHz was used to record the instantaneous accelerations with which the forces were calculated. An encoder with 1000 pulses per revolution was used to record the displacements in terms of the angular position. Because the pendulum trajectory is much longer than the deformation region of the specimen, which is hit at the bottom of the pendulum trajectory, a light barrier was used as an initial filter in order to save only the tensile-impact region data. The information transmitted by the sensors was acquired by an NI cDAQ 9174 and a SMT32Discovery, while the light barrier information was attained by a NI 6212 DAQ with a sampling frequency of 400 kHz. The data acquired by the acquisition cards were filtered with a low-pass filter in LabVIEW, following the recommendations of the SAE J2749 standard , so that experimental tests of resonance were performed on the modified Charpy machine giving results between 10-12 kHz, so that the resonance frequencies of the Charpy machine do not interfere with the obtained results. Eliminating these frequencies is more complex to achieve in dynamic tests than in quasi-static tests [19,27].
Additionally, a Phantom V9-3072MC high-speed camera was used to record the test in such a way that the precise moment of impact between the bolt in the specimen and the anvil could be determined. The camera has a speed of 1016-23391 fps with 1632x1200 and 480x120 resolution. The camera began recording 100 ms after the light barrier was activated, setting this time as the initial (zero) time of the test.
Because there are no standard procedures for obtaining stress-strain curves during tensile- impact tests on plastic materials , two specimen types were used: 1) ASTM D1822 type S specimen (Fig. 1a), the same used for quasi-static tests, and 2) ASTM D638 type V specimen (Fig. 1b). Both specimens were die cut from 3 mm thick injection molded plates. Although the ASTM D1822 standard has another type of specimen, the type L, it is almost identical to the D638 specimen and therefore, type S was selected.
2.3.3. Test conditions
Tests were performed at temperatures between 29°C, similar to those of the quasi-static tests. The pendulum head was released from an initial position of 45°, reaching a speed of 3.1 m/s at the bottom of its trajectory where the specimen hits the anvil. Twenty replicate samples per material were used. The elastic modulus, E, yield strength at 0.2% offset, σ y , maximum strength, σ max , and percent elongation at break or rupture strain, e break were calculated from the stress-strain curves according to Annex 1 of ASTM D638 standard .
3.1. Quasi-static test

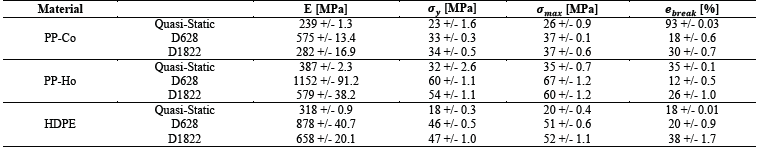

Fig. 3 shows the average stress-strain curves for PP-Co, PP-Ho and HDPE. Table 1 summarizes the properties obtained from these curves. It is observed that PP-Ho has the break. Results agree with data supplied by the provider, in highest modulus as well as yield and maximum strength. On the other hand, PP-Co presents the largest elongation at which a yield stress of 22 and 33 MPa for PP-Co and PP-Ho is reported. However, for the HDPE obtained result for yield strength is much lower than the one reported by the provider (27 MPa).
3.2. High-strain rate test
3.2.1. Repeatability tests

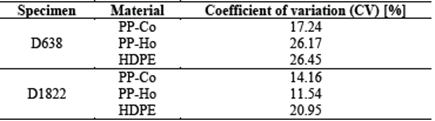

Once the tensile-impact machine was instrumented, tests were performed in order to evaluate the repeatability of the acquired data. These tests consisted on positioning the pendulum at an initial position of 90°, and then leaving it in free fall, acquiring angular position and acceleration data with the encoder and accelerometer, respectively (Fig. 4). Ten tests were performed. A 99.46% and 81.48% of repeatability was found for angular position and acceleration, respectively, which, according to Belingardi  and Chapra  are adequate for this type of dynamic testing.
3.2.2. Stress-strain curves
Linear displacements were calculated from the angular displacements through the pendulum arm length (69 cm). Fig. 5a shows the displacement vs time curve during a tensile-impact test, the angular displacement from the impact to the fracture of the specimen was 0.3 degrees which represents linearly 3.6 mm, for this reason it was assumed that the movement was always linear and approximate the calculation of the force to Newton's second law, which represents for this study, a difference of 4x10-4% from the linear to the rotational. At each time step the engineering strain (e) is calculated as the equation 1
where ∆L is the elongation and L0 the initial gage length. For the D638 specimen L0 is 9.53 mm. However, for the D1822 type S specimen there is no gage length zone so 9.53mm was also used for comparison between the different specimens, because equation 1 requires a L0 it was decided to be the same as the test specimen to be compared for ease of calculation. Note that the rest of the specimen dimensions are very similar to the D638 standard.
From the acceleration (a) vs time curve (Fig. 5b) the force (F) was estimated as the eq. 2. A program in LabVIEW obtained the accelerations (see section 2.3.1) and following Newton's law, the acceleration multiplied by the mass of the body which was assumed totally inelastic at the time of impact. Because the mass of the anvil is much bigger than the specimen, it was assumed that during its deformation until the fracture it is a single body.
where m p is the mass of the pendulum arm and head (8.2 kg).
Stresses (σ) were calculated as the equation 3
where A 0 is the initial area of the cross-section (9.54 mm2). Fig. 5c shows the obtained stress-strain curve for this case.
The engineering stress-strain curves obtained from the tensile-impact tests at an initial arm position of 45° on PP-Co, PP-Ho and HDPE are shown in Fig. 6 for both types of specimens (D638 and D1822). Note that for tests with the D1822 specimen’s dispersion in the curves seems to be lower. Coefficients of variation were calculated for each test and are shown in Table 2. Effectively, the variation in tests with D1822 is lower than with D638 specimens, which has been reported in other studies [30,31].
To obtain the average stress-strain curve for each test, outliers were eliminated (Fig. 8) with a boxplot analysis. A repeatability higher than 75% was found for all the tests. A boxplot analysis was used because the distribution was not normal, since the average ( ) and the median (Me) is very far and the sizes of the boxes were not symmetrical as shown in the Fig. 7. Also, analysis of variance (ANOVA) was performed to find the repeatability of the data with a confidence level of 95%. The standard deviation and mean are a function of the sample time. As a result, a repeatability of approximately 75% was found. The average stress-strain curves for each material during the quasi-static and tensile-impact tests with both specimens are shown in Fig. 8 for comparison. Fig. 7 shows Young's module for HDPE tests with specimen D1822 in a boxplot analysis, where a) we can see outliers that after being removed become b), and thus obtained the values of the mechanical properties of each material. In Table 1 the mechanical properties obtained from these curves are summarized.
It is observed that at higher strain rates the elastic modulus is upper. Curves from specimen D638 presented the highest values. As expected, opposite behavior is observed for rupture strain, which decreases as strain rate increases. Yield and maximum strength also increased, but in this case, values are very similar for both specimens D638 and D1822. At the beginning of the curves presented in Fig. 9, the results show that the stresses values of quasi-static data exceed those of high speed by a fraction of 5% deformation, after many observations this value was attributed to the adjustment of the specimens in the head pendulum at the moment of impact.
The conventional or engineering strain rate is expressed in terms of engineering strain as the equation 4

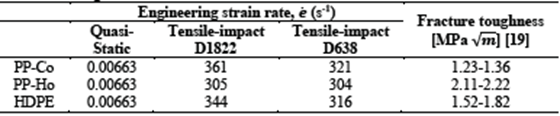

In Fig. 10 the strain rates during quasi-static tests and tensile-impact tests with specimens D638 and D1822 for PP-Co, PP-Ho and HDPE are shown. For the quasi-static tests an average strain rate of 6.63x10-3 s-1 was found. This corresponds to a crosshead speed of approximately 4 mm/min rather than 5 mm/min as programmed in the machine. Analyzing the data, it was found that the maximum crosshead speed reached during the tests was 3.9 mm/min. Note how the strain rate increases from zero until it reaches a constant value once the inertia of the system is overcome. For the tensile-impact tests an opposite behavior is observed: when the specimen hits the anvil and its deformation starts, there is a significant drop in the strain-rate, which then converges to certain value. Note also the difference in the time scale, while the quasi-static tests ran for more than 100 s, the tensile-impact tests are in the range of 2 ms. Strains rates were estimated according to equation 4. In Table 3 the strain rates of PP-Co, PP-Ho and HDPE during the quasi-static and tensile-impact tests are summarized. It is observed that with PP-Co the highest strain rate is achieved, followed by HDPE and PP-Ho. If the fracture toughness of each material (Table 3) is analyzed, it can be observed that the tougher the material is, the more energy it is absorbed, and thus the lower strain rate during the test.
4. Tensile-impact simulation with LS-DYNA
Non-linear finite element simulations using LS-DYNA and LS-PrePost 4.5.18 were performed to model the tensile-impact behavior of PP-Co, PP-Ho and HDPE. Simulations were performed with both D638 and D1822 specimens. 3D solid models of each specimen, according to Fig. 1, were created in SolidWorks 2019 and then exported to LS-PrePost. The mesh element type used in this analysis is tetrahedron with a size of 0.50 mm for the specimen and 1.5 mm for the other components (Fig. 11). The element size was chosen to ensure the analysis convergence.
4.1. Boundary conditions
To simulate the tensile-impact test, where one end of the specimen is being tensed by the pendulum head while the other end is constrained by the anvil through the bolt, nodes at the left borehole were restricted or fixed as shown in Fig. 10 while the other end is hit by a rigid body through a rigid bolt. At the beginning of the simulation there is no contact between any bodies, only until the bolt is hit with two rigid cubes and this transmits a displacement to the specimen. An initial velocity (3.1 m/s which was the experimental velocity before impact) in the x-direction was applied to two rigid cubes with a total mass equivalent to that of the pendulum head 8.2 kg. The translation movement was only in the x-direction as explained in section 3.2.2. These cubes hit the rigid bolt that is connected to the right borehole. Material 020-RIGID of the LS- PrePost 4.5.18 was assigned to the rigid bolt and cubes. Impact simulations were performed to compare the effect of loading quasit-static or high-speed curves (obtained from the experiments tests) to the simulation. Results with both curves were compared with experimental results.
The stress-strain curves obtained, from the quasi-static tests and the tensile-impact tests with both specimens (D638 and D1822), were assigned to the specimen’s material in order to compare the accuracy of each simulation. The material was defined using the 024-PIECEWISE_LINEAR_PLASTICITY model of the LS-PrePost 4.5.18. The materials used in the model were considered isotropic, homogeneous and free of residual stresses.
4.2. Simulation results
Fig. 12a shows the elongation of a specimen at different times during the simulation. For a qualitative comparison, a series of images of the impact-deformation-fracture process captured by the high-speed camera (Fig. 12b) in the same device but with a different pendulum head  that allows recording are shown. As observed, the simulation emulates the deformation process of the specimen during the tensile-impact test. The case presented in Fig. 12 is PP-Co and a D638 specimen, where strain can be predicted at different time intervals. In this order, the information that was acquired to compare was the force at break and the elongation. It is important to mention that for D638 specimens the simulation does not necessarily predict fracture at the middle of the specimen. However, for D1822 specimens, fracture was always predicted at the middle, where the width is the narrowest. Similarly, all simulations performed were made with their respective specimens and loading the appropriate experimental curves.

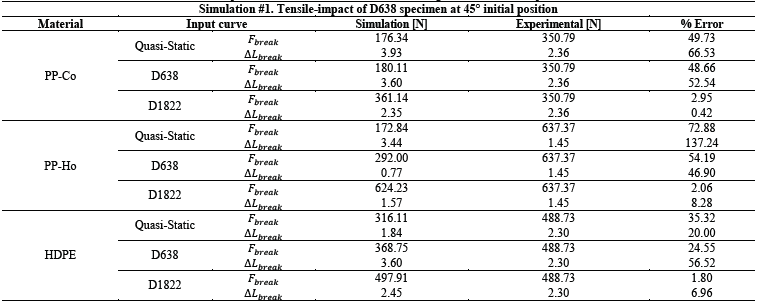

To quantitatively compare the simulation results with the experimental tests, the elongation and force at break were compared. Results are summarized in Table 4.
Results in Table 4 show that the specimen with the best fit has an average percent of error of 2,9% and 4,1% for force and elongation, respectively. These simulations were modeling the D1822 test. Therefore, this type of specimen can acquire a useful and reliable information by a modified Charpy machine. As expected, the error of the simulations using the quasi-static curves is very high: on average 56 and 65% for force and elongation, respectively. As expected, the error of the simulations using the D638 tensile-impact curves was also high: 38% and 52% for force and elongation, respectively.
Takekoshi [30,31] concluded that the D1822 specimen is more effective for determining failure or rupture strain by taking advantage of its shape, as the load tends to concentrate in its center where the width is the narrowest and where rupture occurs. In the case of D638 and other dog-bone or thumb bell specimens, failure strain cannot always be determined due to differences of localization during necking: sometimes specimens show uniform deformation, and other times they deform locally resulting in early failure.
Also, Takekoshi [30,31] concluded that D1822 type S specimen is ideal for high-strain rate tests, even when the specimen has no gauge length to measure strain, as it allows a greater reproducibility of rupture displacements. If the coefficients of variance in Table 2 are compared, it is observed that effectively, tests with D1822 specimens presented lower values of variation when compared with D638 specimens. This allowed to have a better fit when obtaining the stress-strain curves.
A Charpy impact pendulum was modified and instrumented to obtain conventional stress- strain curves at high strain rates (300-400 s-1). Stress-strain curves of three thermoplastics were obtained using two types of specimens: ASTM D638 type V and ASTM D1822 type S. Simulations in LS-DYNA of the tensile-impact tests were performed using the different curves obtained at high strain rates as well as curves from quasi-static tests. These results were compared with experimental ones. The following conclusions were determined:
A 99% and 81% of repeatability for angular position and acceleration, respectively, was obtained in the tensile-impact machine. A repeatability higher than 75% was found for the stress-strain curves obtained with both specimens (D638 and D1822) after the boxplot analysis.
Mechanical properties are very dependent on strain rate. Elastic modulus, yield strength and maximum strength were significantly higher during tensile-impact tests that during quasi-static tests. Elongation showed the opposite effect: it decreased with higher strain rates. This could be verified by the modification of Charpy machine, since with conventional testing machines, which are based on the D638 standard, it is not possible to achieve the high-strain rate used in crashworthiness simulations.
The error of the impact simulations using the curves from the tensile-impact tests with the D1822 specimens resulted in average errors of 2.9% and 4.1% for rupture force and elongation, respectively, while for the quasi-statics curves it was on average 56 and 65% for rupture force and elongation, respectively. This exposes a clear advantage of the D1822 sample over the D638 when subjected to high-strain rate impact, since it presents much smaller errors in the simulation. This is because the type of sample is suitable for the high-rate impact phenomenon.
L.M. Zabala-Gualtero would like to gratefully acknowledge the financial support from the Mexican National Council for Science and Technology (CONACyT).
Zrida, M., Laurent, H., Grolleau, V., Rio, G., Khlif, M., Guines, D., Masmoudi, N. and Bradai, C., High-speed tensile tests on a polypropylene material, Polymer Testing, 29(6), pp. 685-692, 2010. DOI: 10.1016/j.polymertesting.2010.05.007.
Rusinek, A., Bernier, R., Boumbimba, R., Klosak, M., Jankowiak, T. and Voyiadjis, G., New devices to capture the temperature effect under dynamic compression and impact perforation of polymers, application to PMMA, Polymer Testing, 65, pp. 1-9, 2016. DOI: 10.1016/j.polymertesting.2017.10.015.
Fisher, M., Kolb, J. and Cole, S., Enhancing future automotive safety with plastics, in: International Technical Conference on the Enhanced Safety of Vehicles (ESV), [online]. 2007. Available at: https://www-nrd.nhtsa.dot.gov/departments/esv/20th/.
Pradeep, S.A., Iyer, R.K., Kazan, H. and Pilla, S., Automotive applications of plastics: past, present, and future, Applied Plastics Engineering Handbook, 2017, pp. 651-674. DOI: 10.1016/B978-0-323-39040-8/00031-6.
Das, S., Graziano, D., Upadhyayula, V.K., Masanet, E., Riddle, M. and Cresko, J., Vehicle lightweighting energy use impacts in U.S. light-duty vehicle fleet, Sustainable Materials and Technologies, 8, pp. 5-13, 2016. DOI: 10.1016/j.susmat.2016.04.001.
Jang, H., Shin, K., Han, S., Description, A. and Train, T., A Study on crashworhiness assessment and improvement of tilting train made of sandwich composites, International Scholarly and Scientific Research & Innovation, 6(2), pp. 402-406, 2012.
Raisch, S.R. and Möginger, B., High rate tensile tests - Measuring equipment and evaluation, Polymer Testing, 29(2), pp. 265-272, 2010. DOI: 10.1016/j.polymertesting.2009.11.010.
Youn, B.D., Choi, K.K., Yang, R.-J. and Gu, L., Reliability-based design optimization for crashworthiness of vehicle side impact, Structural and Multidisciplinary Optimization, 26 (3-4), pp. 272-283, 2004. DOI: 10.1007/s00158-003-0345-0.
Naughton, P., Extension of material models and finite element techniques to improve the simulation of high speed impact of thermoplastic materials, SAE Technical Paper, International Congress and Exposition, 1999. DOI: 10.4271/1999-01-0300.
Schoig, M., Biergel, C., Grellmann, W. and Mecklenburg, T., Mechanical behavior of glass-fiber reinforced thermoplastic materials under high strain rates, Polymer Testing, 27(7), pp. 893-900, 2008. DOI: 10.1016/j.polymertesting.2008.07.006.
Tasdemirci, A., Kara, A., Turan, A.K., Tunusoglu, G., Guden, M. and Hall, I.W., Experimental and numerical investigation of high strain rate mechanical behavior of a [0/45/90/-45] quadriaxial E-glass/polyester composite, Procedia Engineering, 10, pp. 3068-3073, 2011. DOI: 10.1016/j.proeng.2011.04.508.
Yousef, B.F., Mourad, A.H.I. and Hilal-Alnaqbi, A., Prediction of the mechanical properties of PE/PP blends using artificial neural networks, Procedia Engineering, 10, pp. 2713-2718, 2011. DOI: 10.1016/j.proeng.2011.04.452.
Hamouda, A.M. and Hashmi, M.S., Testing of composite materials at high rates of strain: advances and challenges, Journal of Materials Processing Technology, 77(1-3), pp. 327-336, 1998. DOI: 10.1016/S0924-0136(97)00436-6.
Sahin, S. and Yayla, P., Effects of testing parameters on the mechanical properties of polypropylene random copolymer, Polymer Testing, 24(5), pp. 613-619, 2005. DOI: 10.1016/j.polymertesting.2005.03.002.
Dasari, A. and Misra, R.D.K., On the strain rate sensitivity of high density polyethylene and polypropylenes, Materials Science and Engineering: A. 358(1-2), pp. 356-371, 2003. DOI: 10.1016/S0921-5093(03)00330-7.
Dean, G. and Read, B., Modelling the behaviour of plastics for design under impact, Polymer Testing, 20(6), pp. 677-683, 2001. DOI: 10.1016/S0142-9418(01)00003-4.
Zrida, M., Laurent, H., Rio, G., Pimbert, S., Grolleau, V., Masmoudi, N. and Bradai, C., Experimental and numerical study of polypropylene behavior using an hyper-visco-hysteresis constitutive law, Computational Materials Science, 45(2), pp. 516-527, 2009. DOI: 10.1016/j.commatsci.2008.11.017.
Dasari, A., Duncan, S.J. and Misra, R.D.K., Atomic force microscopy of scratch damage in polypropylene, Journal of Materials Science & Technology, 18(10), pp. 1227-1234, 2002. DOI: 10.1179/026708302225005945.
Xiao, X., Dynamic tensile testing of plastic materials, Polymer Testing, 27(2), pp. 164-178, 2008. DOI:10.1016/j.polymertesting.2007.09.010.Dioh, N.N., Ivankovic, A., Leevers, P.S. and Williams, J.G., The high strain rate behaviour of polymers, Le Journal de Physique IV, 4(C8), pp. 119-124. 1994. DOI: 10.1051/jp4:1994818.
Yang, J., Zhang, Y. and Zhang, Y., Brittle-ductile transition of PP/POE blends in both impact and high speed tensile tests, Polymer, 44(17) pp. 5047-5052, 2003. DOI: 10.1016/S0032-3861(03)00438-5.
Hopmann, C. and Klein, J., Highspeed tensile testing of polymer materials considering force-oscillations and its origin, SPE ANTEC. pp. 1788-1793, 2016.
ASTM, D1822-Standard test method for tensile-impact energy to break plastics and electrical insulating materials, USA, 2014. DOI: 10.1520/D1822-06.3.
ASTM, D256-Standard Test methods for determining the izod pendulum impact resistance of plastics, USA, 2016. DOI: 10.1520/D0256-10.
ASTM, D638-Standard Test method for tensile properties of plastics, USA, 2013. DOI: 10.1520/D0638-10.1.
SAE, J2749-High Strain rate tensile testing of polymers, USA, [online]. 2008. Available at: http://standards.sae.org/j2749_200811/.
Xiao X., On the measurement of true fracture strain of thermoplastics materials, Polymer Testing, 27(3), pp. 284-295, 2008. DOI: 10.1016/j.polymertesting.2007.11.007.
Belingardi, G., Cavatorta, M.P. and Duella, R., Material characterization of a composite-foam sandwich for the front structure of a high speed train, Composite Structures, 61(1-2), pp. 13-25, 2003. DOI: 10.1016/S0263-8223(03)00028-X.
Chapra, S.C. y Canale, R.P., Métodos matemáticos para ingenieros, 5ta ed., McGraw-Hill, Ciudad de México, 2006. pp. 466-499.
Takekoshi, K. and Niwa, K., A study on Preparation of failure parameters for ductile polymers, 13th Int. LS-DYNA Users Conference, 2014, pp. 1-10.
Takekoshi, K. and Niwa, K., Study of material modeling of polymers for impact analysis, Applied Mechanics and Materials, 566, pp. 474-479, 2004. DOI: 10.4028/www.scientific.net/AMM.566.474.
Dieter, J., Metallurgy and metallurgical engineering, 2nd ed., McGraw-Hill Book Company Limited, New York, USA, 1988. pp. 254-256.
Herrera, N., Test methodology for polymers subjected to high speed impact, PhD theses, Tecnológico de Monterrey, Toluca, México, 2014.
