Steganography applied in the origin claim of pictures captured by drones based on chaos
Esteganografía basada en caos, aplicada en la reclamación de origen en imágenes capturadas por drones
DOI:
https://doi.org/10.15446/ing.investig.v38n2.64509Keywords:
Steganography, chaos, security, drones. (en)Estenografía, caos, seguridad, drones (es)

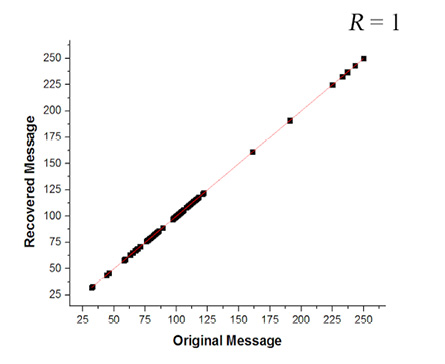

In this work, steganography is implemented in photographs captured by an unmanned aerial vehicle (drone), with the purpose of adding an identifier that indicates which device they are taken from so it works for the recovery of the origin. In the system, a new technique that modifies the least significant bit (LSB) is applied, using a mathematical model to generate the chaotic orbits, one of the parts selects the RGB channel (Red, Green or Blue) where the LSB is changed and the other is implemented to calculate the random position of the sub pixel to be modified in the selected channel. In addition, a comparison between the bit to be hidden and the LSB of the pixel of the image is performed to verify if it is not necessary to modify it, which lessens the alterations in the container image. It is a tool to capture photos remotely with the Ar.Drone 2.0, with the features needed to perform an analysis that uses correlation diagrams and histograms to verify if the integrity of the message is guaranteed or if changes in the stego-image are visible to the naked eye. On the other hand, a test was done on the Baboon image to compare the robustness of the proposed system with other investigations, evaluating the correlation, contrast, energy, homogeneity, MSE, PSNR and quality index. The results generated were compared with the work of other authors concluding our system provides greater security, integrity, high sensitivity to the keys, it is not linked to a single chaotic system and can be applied to hide imperceptibly all kinds of information, in: radiographs, videos, files, official documents, and other types of containers.
En este trabajo se implementó esteganografía en las fotografías capturadas por un vehículo aéreo no tripulado (dron), con la finalidad de agregar un identificador que indique desde que dispositivo fueron tomadas, y funcione para la reclamación de origen. En el sistema se aplicó una nueva técnica que modifica el bit menos significativo (LSB) usando un modelo matemático que se utiliza para generar dos órbitas caóticas, una de las cuales se usa para seleccionar el canal RGB (Rojo, Verde o Azul), donde se cambió el LSB y la otra se implementó para calcular de forma aleatoria la posición del subpixel que se modificará en el canal seleccionado; además se realizó una comparación entre el bit que se desea ocultar y el LSB del pixel de la imagen, para verificar si no es necesario modificarlo, lo cual altera menos la imagen original. Se realizaron pruebas del algoritmo en un Ar.drone 2.0, pero se puede aplicar para ocultar de forma imperceptible todo tipo de información, en: radiografías, videos, archivos, documentos oficiales, o cualquier otro tipo de contendor.
References
Anees, A., Siddiqui, A. M., Ahmed, J., & Hussain, I. (2014, March). A technique for digital steganography using chaotic maps. Nonlinear Dynamics, 75(4), 807-816.
DOI: 10.1007/s11071-013-1105-3
Aziz, M., Tayarami-N, M. H., & Afsar, M. (2015, May). A cycling chaos-based cryptic-free algorithm for image steganography. Nonlinear Dynamics, 80(3), 1271-1290. DOI: 10.1007/s11071-015-1943-2
Baig, F., Khan, M. F., Beg, S., Shah, T., & Saleem, K. (2016, May). Onion steganography: a novel layering approach. Nonlinear Dynamics, 84(3), 1431-1446. DOI:10.1007/s11071-015-2580-5
Bárbara-Morales, E., Alba-Blanco, E., & Rodríguez-Ramírez, O. (2012, May). Modulating electrocardiographic signals with chaotic algorithms. Ingeniería e Investigación, 32(2), 46- 50. Retrieved from https://revistas.unal.edu.co/index.php/ingeinv/article/view/31939/34557
Ghebleh, M., & Kanso, A. (2014, June). A robust chaotic algorithm for digital image steganography. Communications in Nonlinear Science and Numerical Simulation, 19(6), 1898-1907. DOI:10.1016/j.cnsns.2013.10.014
Jiménez-Rodríguez, M., González-Novoa, M. G., Estrada-Gutiérrez, J. C., Acosta-Lua, C., & Flores-Siordia, O. (2016, May). Secure point-to-point communication using chaos. DYNA, 83(197), 181-187. DOI:10.15446/dyna.v83n197.53506
Kanso, A., & Ghebleh, M. (2017, March). An algorithm for encryption of secret images into meaningful images. Optics and Lasers in Engineering, 90(1), 196-208. DOI:10.1016/j.optlaseng.2016.10.009
Martínez-González, R. F., Díaz-Méndez, J. A., Palacio-Luengas, L., López-Hernández, J., & Vázquez-Medina, R. (2016, August). A steganographic method using Bernoulli’s chaotic maps. Computers and Electrical Engineering, 54(C), 435-449. DOI:10.1016/j.compeleceng.2015.12.005
Méndez-Naranjo, P. M. (2015). Nuevo Algoritmo Criptográfico con la incorporación de la esteganografía en imágenes. Riombamba: Escuela Superior Politécnica de Chimborazo. Retrieved from http://www.dspace.uce.edu.ec/bitstream/25000/6356/1/T-UCE-0011-261.pdf
Morocho-Checa, E., Zambrano-Miranda, J. A., Carvajal-Rodríguez, J. E., & Lopez-Fonseca, G. R. (2015, April). Análisis del Algoritmo Esteganográfico F5 para Imágenes JPEG a Color. Revista Politécnica, 36(3), 79-85. Retrieved from http://www.revistapolitecnica.epn.edu.ec/images/revista/volumen36/tomo3/AnalisisdelAlgoritmoEsteganograficoF5paraImagenesJPEGa.pdf
Nassar, S. S., Ayad, N. M., Kelash, H. M., El-sayed, H. S., El-Bendary, M. A., El-Samie, F. E., & Faragallah, O. S. (2016, December). Secure Wireless Image Communication Using LSB Steganography and Chaotic Baker Ciphering. Wireless Pers Commun, 91(3), 1023–1049. DOI:10.1007/s11277-016-3387-5
Ranjith-Kumar, R., Jayasudha, S., & Pradeep, S. (2016, November). Efficient and secure data hiding in encrypted images: A new approach using chaos. Information Security Journal: A Global Perspective, 25(46), 235–246. DOI:10.1080/19393555.2016.1248582
Ratnakirti, R., Anirban, S., & Suvamoy, C. (2013, Decem¬ber). Chaos based Edge Adaptive Image Steganography. Procedia Technology, 10(1), 138-146. DOI:10.1016/j.protcy.2013.12.346
Reshma, R., Ramesh, T. K., & Kumar, P. S. (2015). Security Incident Management in Ground Transportation System Using UAVs. 6th IEEE International Conference on Computational Intelligence (pp. 1-7). Madurai: IEEE. DOI:10.1109/ICCIC.2015.7435627
Rodríguez-Mendoza, M. N. (2016, May 18). Análisis de las técnicas de esteganografía para el ocultamiento de información. Tesis - Ingeniería en Informática. Quito, Pichincha, Ecuador: Universidad Central de Ecuador. Retrieved from http://www.dspace.uce.edu.ec/bitstream/25000/6356/1/T-UCE-0011-261.pdf
Rössler, O. E. (1976, July). An Equation for Continuous Chaos. Physical Letters, 57(5), 397-398. DOI:10.1016/0375- 9601(76)90101-8
Samland, F., Fruth, J., Hildebrandt, M., & Dittman, J. (2012). AR.Drone: Security threat analysis and exemplary attack to track persons. Proceedings of SPIE - The International Society for Optical Engineering (pp. 1-15). Magdeburg: SPIE. DOI:10.1117/12.902990
SCT, C. S. (2015, April 4). Regula la SCT el uso de Aeronaves No Tripuladas (Drones). Retrieved from Secretaría de Comunicación y Transportes: http://www.sct.gob.mx/ despliega-noticias/article/regula-la-sct-el-uso-de-aerona¬ves-no-tripuladas-drones/
Sen-Te, J., & Samsudin, A. (2017, January). A Chaos-Based Authenticated Cipher with Associated Data. Security and Communication Networks, 17(1), 1-15. DOI: 10.1155/2017/9040518
Sharif, A., Mollaeefar, M., & Nazari, M. (2016, March). A novel method for digital image steganography based on a new three-dimensional chaotic map. Multimedia Tools and Applications, 1-19. DOI: 10.1007/s11042-016-3398-y
Xiang, T., Hu, J., & Sun, J. (2015, August). Outsourcing chaotic selective image encryption to the cloud with steganography. Digital SignalProcessing, 43(C), 28-37. DOI: 10.1016/j.dsp.2015.05.006
